Class 47 bogie cross member

Prepared by Steve Luck Originator David Stevens

David Stevens - Dec 17, 2017
Hello all, I have just acquired a Heljan 47 which to my eye is looking a little bare under the buffer beams. I have been looking at photos of real 47`s and I cannot find any which clearly show a cross member to the bogie. Can any 47 fans, point me in the right direction, so that I can put matters right, thanks.
Irving22850 - Dec 17, 2017

Hi David,
Brian Daniels had an extensive range of reference photos here:
https://www.flickr.com/photos/brianews/albums/72157627029323184

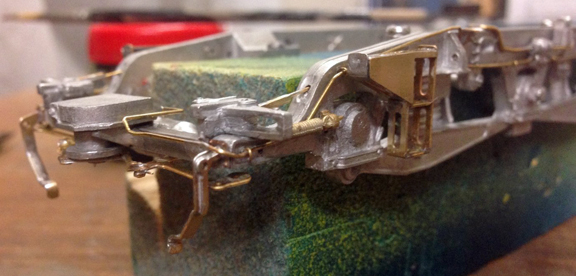

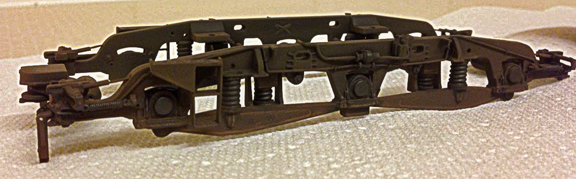

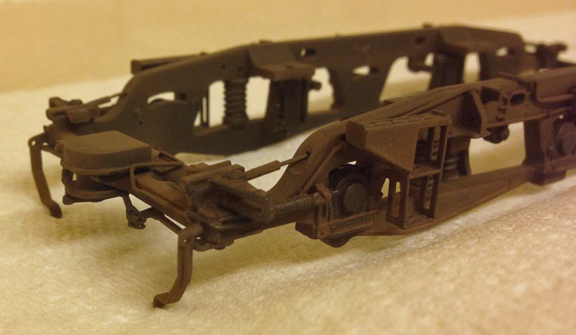

Also, if it helps, here are the class 47 bogies I built for my DJH kit.

class47cross1.jpg class47cross2.jpg class47cross3.jpg

Clark18448 - Dec 31, 2017\
The David Parkins Class 47 Bogie upgrade kits for the Heljan Class 47 work very well
